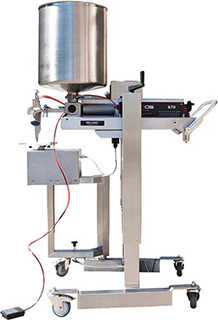

Bellift
Ergonomic operation that adjusts to your preferred height.
- Up to 120 deposits per minute
- 5 mL to 1340 ml deposit range
- Pneumatically adjustable height
What It Does
The Bellift takes ergonomics seriously. Pneumatic height adjustment means you can raise or lower the entire machine with the push of a button—no manual cranking or lifting. Lower it for easy hopper filling and cleaning, raise it to optimal working height for depositing.
This matters during long production runs where operator comfort affects both speed and quality. The mobile frame allows positioning wherever needed, and the pneumatic adjustment makes switching between tasks effortless.
Perfect For:
- High-volume operations with extended production runs
- Multi-operator environments with different height needs
- Operations prioritizing ergonomic equipment
- Facilities requiring frequent hopper access
Technical Specifications:
- Power: Pneumatic (air only, no electricity)
- Air requirements:
Bellift 275: 29 l/min at 30 deposits/min, 7 Bar / 102 PSI
Bellift 670: 121 l/min at 30 deposits/min, 7 Bar / 102 PSI
Bellift 1340: 219 l/min at 30 deposits/min, 7 Bar / 102 PSI - Speed: Up to 120 deposits/min
- Deposit range:
Bellift 275: 5-275ml
Bellift 670: 5-670ml
Bellift 1340: 5-1340ml - Hopper capacity: 18L, 25L, or 60L
- Frame: Mobile, pneumatically adjustable in height
- Construction: Stainless steel
Applications:
Cake batter, muffins, jam, jelly, fruit filling, cream, mousse, meringue, ice cream, yogurt, soup, sauce, mashed potatoes, minced meat, salad; injecting éclairs, Berliners, profiteroles; decorating
